ZVEI Selcall
From Signal Identification Wiki
 | |
|---|---|
| Frequencies | 30 MHz,800 MHz |
| Frequency Range | 30 MHz - 800 MHz |
| Mode | NFM |
| Modulation | MFSK |
| ACF | — |
| Emission Designator | — |
| Bandwidth | 5 kHz |
| Location | Worldwide |
| Short Description | ZVEI is a family of selcall modes defined by the Zentralverband der Electrotechnischen Industrie in Germany. Selcall modes include ZVEI-1, ZVEI-2, ZVEI-3, PZVEI, DZVEI, PDZVEI and ZVEI-VDEW. |
| I/Q Raw Recording | — |
| Audio Sample | |
ZVEI is a family of selcall modes defined by the ZVEI (Zentralverband Elektrotechnik- und Elektronikindustrie e.V.) in Germany. Selcall modes include ZVEI-1, ZVEI-2, ZVEI-3, PZVEI, DZVEI, PDZVEI and ZVEI-VDEW. Each varies only in the frequency digit encoding.
Selcall (selective calling) is a type of squelch protocol used in radio communications systems, in which transmissions include a brief burst of sequential audio tones. Receivers that are set to respond to the transmitted tone sequence will open their squelch, while others will remain muted.

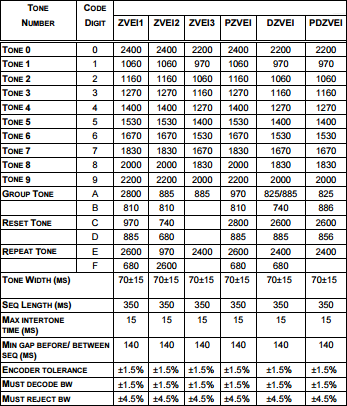

The different parameters for each mode can be seen in the following table. Tone width is how long each tone lasts.
| Tone Number |
Code Digit |
||||||
|---|---|---|---|---|---|---|---|
| ZVEI1 | ZVEI2 | ZVEI3 | PZVEI | DZVEI | PDZVEI | ||
| Tone 0 | 0 | 2400 | 2400 | 2200 | 2400 | 2200 | 2200 |
| Tone 1 | 1 | 1060 | 1060 | 970 | 1060 | 970 | 970 |
| Tone 2 | 2 | 1160 | 1160 | 1060 | 1160 | 1060 | 1060 |
| Tone 3 | 3 | 1270 | 1270 | 1160 | 1270 | 1160 | 1160 |
| Tone 4 | 4 | 1400 | 1400 | 1270 | 1400 | 1270 | 1270 |
| Tone 5 | 5 | 1530 | 1530 | 1400 | 1530 | 1400 | 1400 |
| Tone 6 | 6 | 1670 | 1670 | 1530 | 1670 | 1530 | 1530 |
| Tone 7 | 7 | 1830 | 1830 | 1670 | 1830 | 1670 | 1670 |
| Tone 8 | 8 | 2000 | 2000 | 1830 | 2000 | 1830 | 1830 |
| Tone 9 | 9 | 2200 | 2200 | 2000 | 2200 | 2000 | 2000 |
| Group Tone | A | 2800 | 885 | 885 | 970 | 825/885 | 825 |
| B | 810 | 810 | 810 | 740 | 886 | ||
| Reset Tone | C | 970 | 740 | 2800 | 2600 | 2600 | |
| D | 885 | 680 | 885 | 885 | 856 | ||
| Repeat Tone | E | 2600 | 970 | 2400 | 2600 | 2400 | 2400 |
| F | 680 | 2600 | 680 | 680 | |||
| Tone Width (msmilliseconds (.001 of a second)) | 70±15 | 70±15 | 70±15 | 70±15 | 70±15 | 70±15 | |
| Seq Length (msmilliseconds (.001 of a second)) | 350 | 350 | 350 | 350 | 350 | 350 | |
| Max intertone time (msmilliseconds (.001 of a second)) |
15 | 15 | 15 | 15 | 15 | 15 | |
| Min gap before/between seq (msmilliseconds (.001 of a second)) |
140 | 140 | 140 | 140 | 140 | 140 | |
| Encoder tolerance | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% | |
| Must decode bw | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% | |
| Must reject bw | ±4.5% | ±4.5% | ±4.5% | ±4.5% | ±4.5% | ±4.5% | |
Samples[edit]

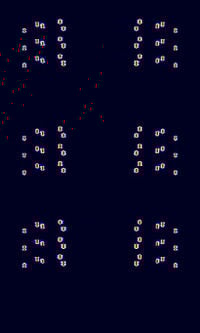

| ZVEI-1 Full Range | ZVEI-1 5-Tones |
|---|---|
 |
|

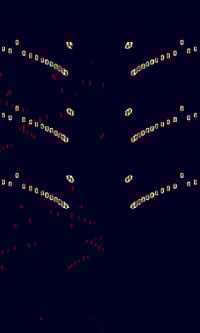

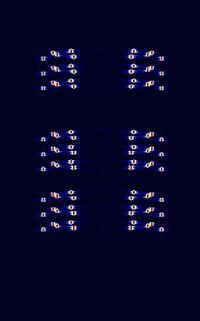

| ZVEI-2 Full Range | ZVEI-2 5-Tones |
|---|---|
 |
 |

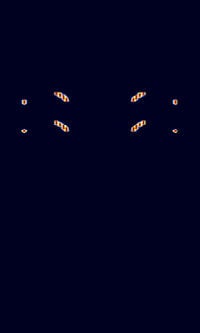

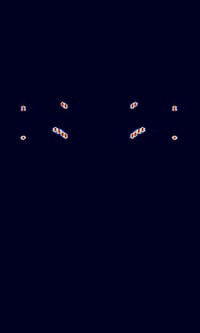

| ZVEI-3 5-Tones | PDZVEI 5-Tones |
|---|---|
 |
 |

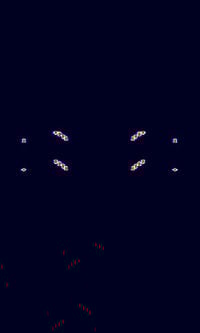

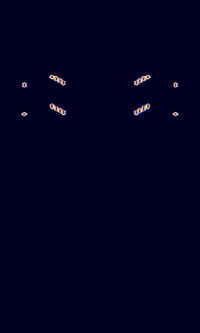

| PZVEI 5-Tones | DZVEI 5-Tones |
|---|---|
 |
 |
Decoding Software[edit]
- Hobby Level Software
- Professional Software
Video Examples[edit]
Additional Links[edit]
- shoc Database: ZVEI
- WAVECOM Database: ZVEI-1
- WAVECOM Database: ZVEI-2
- WAVECOM Database: ZVEI-3
- WAVECOM Database: PZVEI
- WAVECOM Database: DZVEI
- WAVECOM Database: PDZVEI
- WAVECOM Database: ZVEI-VDEW
- Connect Systems Incorporated Programming Manual with ZVEI
- Tone Signaling Charts
Additional Images[edit]
|
|
