Unidentified 'buzzer' or possibly jammer
Buzzer or jammer.png
Frequencies 3 MHz,30 MHz
Frequency Range 3 MHz - 30 MHz
Mode USB
Modulation FM
ACF
Bandwidth 2 kHz,5 kHz,20 kHz,3 kHz
Location Wolrdwide
Short Description Unknown "buzzer" signal. Suspected as a channel marker, possibly a Russian military jamming system.
I/Q Raw Recording
Audio Sample

Reports of this signal started in late 2023. It was first thought that it's a new channel marker from Russia. However, it was spotted on numerous frequencies and it changed frequencies occasionally, so this channel marker theory is unlikely. Some listeners on reddit and UDXF have suggested that this is a military jamming system and the name of such system: Murmansk-BN is sometimes mentioned. Sometimes it has been claimed that this kind of transmission originated from Iran. Some sources indicate that the Russian system has been exported to Iran.

The Murmansk-BN is a HFHigh Frequency (3-30 MHz) jamming system that is designed to disrupt Link-11, HFGCS, various STANAGNATO Standardization Agreement (STANAG), defines processes, procedures, terms, and conditions for common military or technical procedures or equipment between the member countries of the North Atlantic Treaty Organization (NATO). modes and other western and NATONorth Atlantic Treaty Organization shortwave communications.

This signal is FMFrequency Modulation modulated by a 85 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). sine wave which is also AMAmplitude Modulation modulated at a few Hertz. Because of this it has also been called "Jammer 85" or "Jammer 84". Bandwidth can vary from 2 kHzKiloHertz (kHz) 10^3 Hz to 20 kHzKiloHertz (kHz) 10^3 Hz or more and both interrupted and continuous transmissions exist.

If this is a jammer it can likely use other waveforms to adapt for different target signals.


Samples[edit]

Longer buzz mode:

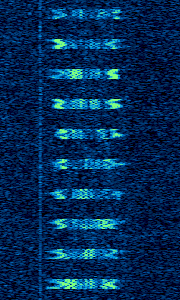

Short buzz, roughly 3kHz BW
Buzzer or jammer 3k bw.png

Continuous mode, BW=2kHz, USBUpper Side Band Modulation (Radio, referring to reception and modulation mode)Universal Serial Bus (Computer, referring to USB Ports and cables) and FMFrequency Modulation Continuous mode, BW=5kHz, USBUpper Side Band Modulation (Radio, referring to reception and modulation mode)Universal Serial Bus (Computer, referring to USB Ports and cables) and FMFrequency Modulation Continuous mode, BW=20kHz, USBUpper Side Band Modulation (Radio, referring to reception and modulation mode)Universal Serial Bus (Computer, referring to USB Ports and cables) and FMFrequency Modulation
(USBUpper Side Band Modulation (Radio, referring to reception and modulation mode)Universal Serial Bus (Computer, referring to USB Ports and cables) tuned to lower edge of signal)

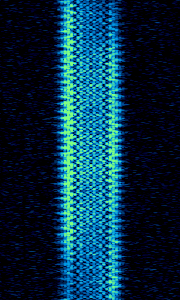

Buzzer or jammer 2k bw.png

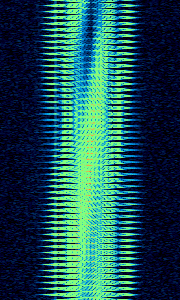

Buzzer or jammer 5k bw.png

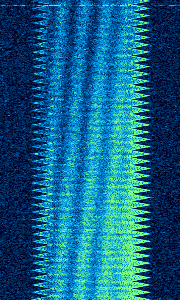

Buzzer or jammer 20k bw.png

Frequencies[edit]

Frequencies may vary from 3 MHzMegaHertz (MHz) 10^6 Hz to 30 MHzMegaHertz (MHz) 10^6 Hz or even more.


Video Examples[edit]

Additional Links[edit]

Add other sources if found
