MIL-STD-188-110 Appendix B 39-Tone
188-110 App B.jpg
Frequencies 3 MHzMegaHertz (MHz) 10^6 Hz3,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
3,000 kHzKiloHertz (kHz) 10^3 Hz
,30 MHzMegaHertz (MHz) 10^6 Hz30,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
30,000 kHzKiloHertz (kHz) 10^3 Hz
3,000 kHzKiloHertz (kHz) 10^3 Hz
MHzMegaHertz (MHz) 10^6 Hz
30,000 kHzKiloHertz (kHz) 10^3 Hz
30 MHzMegaHertz (MHz) 10^6 Hz
Frequency Range MHzMegaHertz (MHz) 10^6 Hz3,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
3,000 kHzKiloHertz (kHz) 10^3 Hz
- 30 MHzMegaHertz (MHz) 10^6 Hz30,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
30,000 kHzKiloHertz (kHz) 10^3 Hz
Mode USBUpper Side Band Modulation (Radio, referring to reception and modulation mode)Universal Serial Bus (Computer, referring to USB Ports and cables)
Modulation PSKPhase-Shift Keying,OFDMOrthogonal Frequency-Division Multiplexing
ACFAutoCorrelation Function
Bandwidth 2400 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).2.4 kHzKiloHertz (kHz) 10^3 Hz
0.0024 MHzMegaHertz (MHz) 10^6 Hz
2.4 kHzKiloHertz (kHz) 10^3 Hz
0.0024 MHzMegaHertz (MHz) 10^6 Hz
2.4 kHzKiloHertz (kHz) 10^3 Hz
0.0024 MHzMegaHertz (MHz) 10^6 Hz
Location Worldwide
Short Description MIL-STD-188-110 Appendix B is a 39-tone OFDMOrthogonal Frequency-Division Multiplexing DQPSKDifferential Quadrature Phase-Shift Keying mode used to send data and voice.
I/Q Raw Recording
Audio Sample
MIL-STD-188-110 Appendix B is a 39-tone OFDMOrthogonal Frequency-Division Multiplexing DQPSKDifferential Quadrature Phase-Shift Keying mode used to send data and voice. MIL-STD-188-110 Appendix B exists for revisions 110A, 110B, and 110C. It will soon be phased out in favor of single-tone serial PSKPhase-Shift Keying modes.

App.B operates with a baudBaud (unit symbol Bd) is the unit for symbol rate or modulation rate in symbols per second. rate of 44.44 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).. It has a signature preamble with a pilot tone located ~393 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). from the unmodulated carrier. A close variant of this mode, STANAG 4197, is used in ANDVT's.

6 user speeds exist for App.B. 75, 150, 300, 600, 1200, and 2400. Speeds 75-1200bps has 4 degrees of interleaving, where 2400bps has 8 degrees of interleaving.


Samples[edit]

Interleaving Modes
Short Interleave Long Interleave

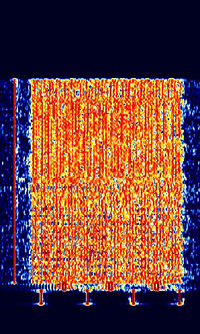

Short Interleave 39 tone.jpg

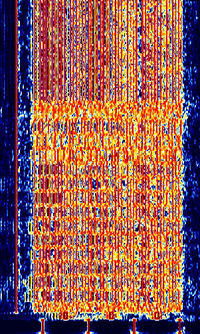

Long Interleave 39 tone.jpg

Various other samples:

Sample 1:

Sample 2:

Digital Voice TXTransmit

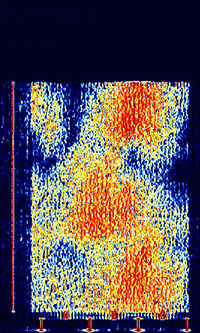

Dig data App B.jpg
