Unidentified but likely Iranian broadcast jammer
From Signal Identification Wiki
 | |
|---|---|
| Frequencies | 13.755 MHz,15.47 MHz,15.48 MHz,7.51 MHz,7.49 MHz,12.11 MHz |
| Frequency Range | 7.49 MHz - 15.48 MHz |
| Mode | AM |
| Modulation | AM |
| ACF | — |
| Bandwidth | 10 kHz,15 kHz |
| Location | Worldwide |
| Short Description | Broadcast jammer with characteristic sound. Quite likely Iranian as it seems to target Radio Farda broadcasts. |
| I/Q Raw Recording | — |
| Audio Sample | |

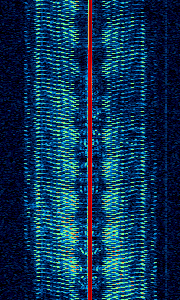

This is a broadcast jammer with characteristic sound, like "water droplets". It is likely Iranian as it has been observed jamming Radio Farda broadcasts, and it has been very active after the US-Israeli attack on Iran started in late February 2026.
Samples[edit]
| Another sample |
|---|
 |
Frequencies[edit]
This jammer has been heard on the following frequencies but this list is likely not exhaustive.
- 7490 kHzKiloHertz (kHz) 10^3 Hz
- 7510 kHzKiloHertz (kHz) 10^3 Hz
- 12110 kHzKiloHertz (kHz) 10^3 Hz
- 13755 kHzKiloHertz (kHz) 10^3 Hz
- 15470 kHzKiloHertz (kHz) 10^3 Hz
- 15480 kHzKiloHertz (kHz) 10^3 Hz
At least some of these frequencies are used by Radio Farda, a US-funded station which broadcasts news to Iranian audience independently of the Iranian government.
