Unidentified FMCW Radar on 17227khz
From Signal Identification Wiki
 | |
|---|---|
| Frequencies | 17.227 MHz |
| Frequency Range | 17.227 MHz - 17.227 MHz |
| Mode | USB |
| Modulation | FMCW |
| ACF | — |
| Bandwidth | 20 kHz |
| Location | Worldwide |
| Short Description | Unknown radar, FMCW mode, 20 kHz wide and 101 to 102 sweeps/sec. |
| I/Q Raw Recording | — |
| Audio Sample | |
This is likely an unidentified OTHOver The Horizon (very long range) radar that was received on 17227 kHzKiloHertz (kHz) 10^3 Hz. It transmits in FMCW mode, possibly 101 or 102 sweeps/sec, 20 kHzKiloHertz (kHz) 10^3 Hz bandwidth.

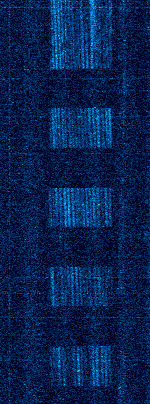

At some point it switched from continuous transmission to bursting mode, and then back after some time.
This may also be a variant of: HF_trading_link_'120_Hz_FMCW_idle_tone' but radar may be more likely.
Samples[edit]
FMFrequency Modulation:
Extra wide USBUpper Side Band Modulation (Radio, referring to reception and modulation mode)Universal Serial Bus (Computer, referring to USB Ports and cables) (experimental):
 |
Frequencies[edit]
17227 khz
