Primary aeronautical surveillance radar

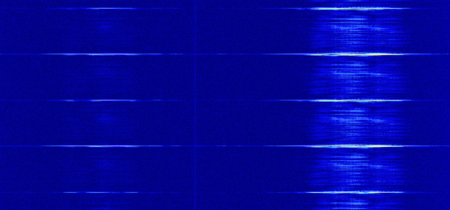

L-band radar.JPG
Frequencies 1215 MHz,1400 MHz
Frequency Range 1215 MHz - 1400 MHz
Mode Pulse
Modulation RAW
ACF
Emission Designator
Bandwidth 3 MHz
Location Worldwide
Short Description A Primary radar (PSR Primary Surveillance Radar) is a conventional radar sensor that illuminates a large portion of space with an electromagnetic wave and receives back the reflected waves from targets within that space.
I/Q Raw Recording
Audio Sample

A Primary radar (PSR Primary Surveillance Radar) is a conventional radar sensor that illuminates a large portion of space with an electromagnetic wave and receives back the reflected waves from targets within that space. The term thus refers to a radar system used to detect and localize potentially non-cooperative targets. It is specific to the field of air traffic control where it is opposed to the secondary radar which receives additional information from the target's transponder.

Additional Images[edit]

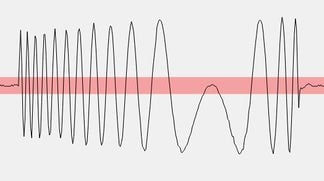

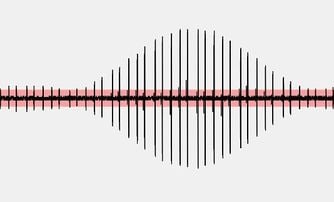

L radar impulses.JPG L band Single pulse.JPG


Pulses and single pulse shape.
