Panther-H Modem

From Signal Identification Wiki
Jump to: navigation, search
Panther-H Modem
Panther-H SOC.png
Frequencies 1.5MHz1,500,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
1,500 kHzKiloHertz (kHz) 10^3 Hz
,30 MHzMegaHertz (MHz) 10^6 Hz30,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
30,000 kHzKiloHertz (kHz) 10^3 Hz
1,500 kHzKiloHertz (kHz) 10^3 Hz
1.5 MHzMegaHertz (MHz) 10^6 Hz
30,000 kHzKiloHertz (kHz) 10^3 Hz
30 MHzMegaHertz (MHz) 10^6 Hz
Frequency Range 1.5 MHzMegaHertz (MHz) 10^6 Hz1,500,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
1,500 kHzKiloHertz (kHz) 10^3 Hz
- 30 MHzMegaHertz (MHz) 10^6 Hz30,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
30,000 kHzKiloHertz (kHz) 10^3 Hz
Mode USBUpper Side Band Modulation (Radio, referring to reception and modulation mode)Universal Serial Bus (Computer, referring to USB Ports and cables)
Modulation PSKPhase-Shift Keying
ACFAutoCorrelation Function
Bandwidth 3000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).kHzKiloHertz (kHz) 10^3 Hz
0.003 MHzMegaHertz (MHz) 10^6 Hz
kHzKiloHertz (kHz) 10^3 Hz
0.003 MHzMegaHertz (MHz) 10^6 Hz
kHzKiloHertz (kHz) 10^3 Hz
0.003 MHzMegaHertz (MHz) 10^6 Hz
Location Worldwide
Short Description Panther-H is an intelligent frequency hopping transceiver developed by Racal (now Thales Group). Has a signature 8-burst SOC (Start Of Conversation) sync procedure. Used in Panther-2000H radios
I/Q Raw Recording
Audio Sample
Panther-H is an intelligent frequency hopping transceiver developed by Racal (now Thales Group). Has a signature 8-burst SOC (Start Of Conversation) sync procedure.

This transceiver, when in frequency hopping mode, will begin with the 8-burst SOC. After a SOC, the modem will begin sending data using frequency hopping, typically covering a bandwidth of 64kHz, 128kHz, or 256kHz, but it can cover up to 2 MHzMegaHertz (MHz) 10^6 Hz. The SOC bursts each last 95ms, and the data bursts in freq hopping mode last about 121ms each. The SOC bursts stay on the same frequency for 8 bursts; they don't frequency hop. Frequency hopping begins when a connection is established between two parties and data begins to transmit.

The modem uses QPSKQuadrature Phase-Shift Keying (2 bits per symbol) at 2400 BdBaud (unit symbol Bd) is the unit for symbol rate or modulation rate in symbols per second.. For frequency hopping, the standard speed is 10 hops/s.


Samples[edit]

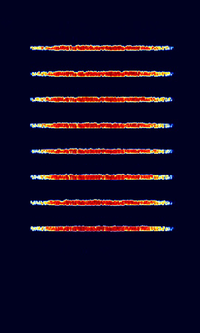

SOC Bursts



Panther-H SOC.png

Freq Hop Burst
Panther-H Freq Hopping burst.jpg

Frequencies[edit]

1.5 to 30MHz in 100Hz steps.
