MOBITEX
MOBITEX 8000.jpg
Frequencies 900 MHzMegaHertz (MHz) 10^6 Hz900,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
900,000 kHzKiloHertz (kHz) 10^3 Hz
,400 MHzMegaHertz (MHz) 10^6 Hz400,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
400,000 kHzKiloHertz (kHz) 10^3 Hz
,450 MHzMegaHertz (MHz) 10^6 Hz450,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
450,000 kHzKiloHertz (kHz) 10^3 Hz
,424 MHzMegaHertz (MHz) 10^6 Hz424,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
424,000 kHzKiloHertz (kHz) 10^3 Hz
400,000 kHzKiloHertz (kHz) 10^3 Hz
400 MHzMegaHertz (MHz) 10^6 Hz
900,000 kHzKiloHertz (kHz) 10^3 Hz
900 MHzMegaHertz (MHz) 10^6 Hz
Frequency Range 400 MHzMegaHertz (MHz) 10^6 Hz400,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
400,000 kHzKiloHertz (kHz) 10^3 Hz
- 900 MHzMegaHertz (MHz) 10^6 Hz900,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
900,000 kHzKiloHertz (kHz) 10^3 Hz
Mode NFMNarrowband Frequency Modulation
Modulation GMSKGaussian Minimum-Shift Keying,FFSKFast Frequency-Shift Keying
ACFAutoCorrelation Function
Bandwidth 15 kHzKiloHertz (kHz) 10^3 Hz15,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
0.015 MHzMegaHertz (MHz) 10^6 Hz
15 kHzKiloHertz (kHz) 10^3 Hz
0.015 MHzMegaHertz (MHz) 10^6 Hz
15 kHzKiloHertz (kHz) 10^3 Hz
0.015 MHzMegaHertz (MHz) 10^6 Hz
Location Worldwide
Short Description MOBITEX is an OSI based open standard, national public access wireless packet-switched data network.
I/Q Raw Recording Download file
Audio Sample
MOBITEX is an OSI based open standard, national public access wireless packet-switched data network that was used by military, police, firefighters and ambulance services. It was developed in the beginning of the 1980s by the Swedish Televerket Radio. From 1988 the development took place in Eritel, a joint-venture between Ericsson and Televerket, later on as an Ericsson subsidiary. Mobitex became operational in Sweden in 1986.

Mobitex was offered on over 30 networks on five continents. In Canada it was first introduced in 1990 by Rogers Cantel, and in 1991 by carrier RAM Mobile Data. By 2005, it was primarily used in the USA and Canada. European Mobitex networks completely withered in the shadow of the overwhelming success of GSM there in the early 1990s. Exceptions to this are Mobitex networks in the Netherlands, Belgium and Luxembourg. MOBITEX is still in use in countries such as Hong Kong.

Modes[edit]

There are two variants: MOBITEX-1200 and MOBITEX-8000.

MOBITEX-1200 uses FFSKFast Frequency-Shift Keying. Mobitex 1200 operated in the VHFVery High Frequency (30-300 MHz) band 76 – 82 MHzMegaHertz (MHz) 10^6 Hz in Sweden and around 160 MHzMegaHertz (MHz) 10^6 Hz in Finland, using 1200 bpsBits per second (bps) FFSKFast Frequency-Shift Keying indirect FMFrequency Modulation. In Sweden a nationwide system channel was operating on 76.7375 MHzMegaHertz (MHz) 10^6 Hz for base-to-mobile communications and on 81.7375 MHzMegaHertz (MHz) 10^6 Hz in the opposite direction.

MOBITEX-1200 was the first MOBITEX standard and is similar to MOBITEX-8000 above the ROSI link-layer. Sweden closed down the service since 2012 step by step. It is unknown whether the service is still active in some areas.

MOBITEX-8000 uses GMSKGaussian Minimum-Shift Keying with a slotted aloha protocol at 8000 bit/sBits per second (bps), although user throughput is typically around half of that.

Samples[edit]

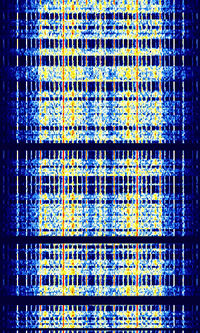

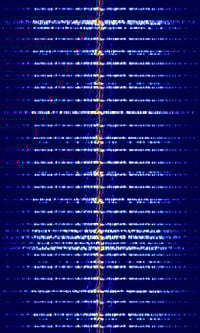

MOBITEX 1200 MOBITEX 8000
Additional Samples: MOBITEX 8000, 936.787 MHzMegaHertz (MHz) 10^6 Hz, Jan 23, 2015

Decoding Software[edit]

Hobby Level Software

Frequencies[edit]

In North America, Mobitex runs at 900 MHzMegaHertz (MHz) 10^6 Hz, while in Europe it uses 400 - 450 MHzMegaHertz (MHz) 10^6 Hz.
