WEFAX

From Signal Identification Wiki
Jump to: navigation, search
WEFAX

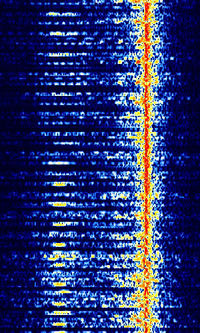

Weather Fascimile.jpg
Frequencies 3 MHzMegaHertz (MHz) 10^6 Hz3,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
3,000 kHzKiloHertz (kHz) 10^3 Hz
,30 MHzMegaHertz (MHz) 10^6 Hz30,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
30,000 kHzKiloHertz (kHz) 10^3 Hz
3,000 kHzKiloHertz (kHz) 10^3 Hz
MHzMegaHertz (MHz) 10^6 Hz
30,000 kHzKiloHertz (kHz) 10^3 Hz
30 MHzMegaHertz (MHz) 10^6 Hz
Frequency Range MHzMegaHertz (MHz) 10^6 Hz3,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
3,000 kHzKiloHertz (kHz) 10^3 Hz
- 30 MHzMegaHertz (MHz) 10^6 Hz30,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
30,000 kHzKiloHertz (kHz) 10^3 Hz
Mode USBUpper Side Band Modulation (Radio, referring to reception and modulation mode)Universal Serial Bus (Computer, referring to USB Ports and cables)
Modulation FMFrequency Modulation
ACF
Bandwidth 3000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).kHzKiloHertz (kHz) 10^3 Hz
0.003 MHzMegaHertz (MHz) 10^6 Hz
kHzKiloHertz (kHz) 10^3 Hz
0.003 MHzMegaHertz (MHz) 10^6 Hz
kHzKiloHertz (kHz) 10^3 Hz
0.003 MHzMegaHertz (MHz) 10^6 Hz
Location Worldwide
Short Description Radiofax (Also known as Weatherfax, HFHigh Frequency (3-30 MHz)-FAX, WEFAX, and Weather Facsimile) is a slow scan analog image transmission mode used for the transmission of press images, weather charts, newspapers, and meteorological reports.
I/Q Raw Recording
Audio Sample
WEFAX (Also known as Weatherfax, HFHigh Frequency (3-30 MHz)-FAX, Radiofax, and Weather Facsimile) is a slow scan analog image transmission mode used for the transmission of press images, weather charts, newspapers, and meteorological reports. Kyodo News, a Japanese newspaper, transmits entire pages via WEFAX.

WEFAX was originally developed for satellite usage, but has gained usage in the HFHigh Frequency (3-30 MHz) bands in the past decades. Satellite WEFAX use can be seen at Meteosat WEFAX.


Click Here to Hear WEFAX Live at WebSDR Univ. of Twente[edit]

Format[edit]

WEFAX's format is a derivative of the Automatic Picture Transmission (APT) originally developed for transmission from the polar satellites of the USA.

WEFAX has 60, 90, 100, 120, 180 and 240 LPM (Lines per minute) speeds, and two IOC (Index of Cooperation) modes, IOC 576 and IOC 288. Most weather forecasts are sent in IOC 576.

WEFAX frame format
Signal Duration IOC576 IOC288 Remarks
Start tone 5s 300 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 675 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 200 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). for colour fax modes.
Phasing signal 30s Black line interrupted by a white pulse.
Image Variable 1200 lines 600 lines At 120 lpm.
Stop tone 5s 450 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 450 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
Black 10s

Samples[edit]

Speed Modes

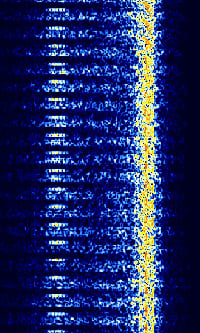

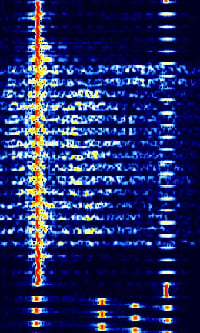

120 LPM 240 LPM

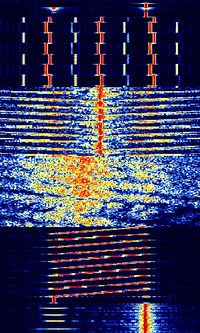

Northwood[edit]

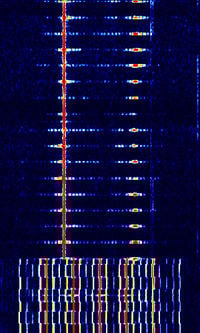

Intro Fax End of Trans.
Weather Fascimile.jpg

Frequencies[edit]

Typically around 3 MHzMegaHertz (MHz) 10^6 Hz3,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
3,000 kHzKiloHertz (kHz) 10^3 Hz
to 16 MHzMegaHertz (MHz) 10^6 Hz16,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
16,000 kHzKiloHertz (kHz) 10^3 Hz
. See here for Northwood UK Weatherfax frequencies.
