STANAGNATO Standardization Agreement (STANAG), defines processes, procedures, terms, and conditions for common military or technical procedures or equipment between the member countries of the North Atlantic Treaty Organization (NATO). 4539

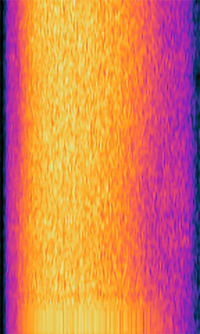

QAM 8000 M.jpg
Frequencies 3MHz3,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
3,000 kHzKiloHertz (kHz) 10^3 Hz
,30 MHzMegaHertz (MHz) 10^6 Hz30,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
30,000 kHzKiloHertz (kHz) 10^3 Hz
3,000 kHzKiloHertz (kHz) 10^3 Hz
MHzMegaHertz (MHz) 10^6 Hz
30,000 kHzKiloHertz (kHz) 10^3 Hz
30 MHzMegaHertz (MHz) 10^6 Hz
Frequency Range MHzMegaHertz (MHz) 10^6 Hz3,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
3,000 kHzKiloHertz (kHz) 10^3 Hz
- 30 MHzMegaHertz (MHz) 10^6 Hz30,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
30,000 kHzKiloHertz (kHz) 10^3 Hz
Mode USBUpper Side Band Modulation (Radio, referring to reception and modulation mode)Universal Serial Bus (Computer, referring to USB Ports and cables)
Modulation PSKPhase-Shift Keying,QAMQuadrature Amplitude Modulation
ACF 119.6 msmilliseconds (.001 of a second)
Bandwidth 3000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).kHzKiloHertz (kHz) 10^3 Hz
0.003 MHzMegaHertz (MHz) 10^6 Hz
kHzKiloHertz (kHz) 10^3 Hz
0.003 MHzMegaHertz (MHz) 10^6 Hz
kHzKiloHertz (kHz) 10^3 Hz
0.003 MHzMegaHertz (MHz) 10^6 Hz
Location Worldwide
Short Description STANAGNATO Standardization Agreement (STANAG), defines processes, procedures, terms, and conditions for common military or technical procedures or equipment between the member countries of the North Atlantic Treaty Organization (NATO). 4539 or MIL-STD-188-110B/C Appendix C is a HDR (110B) / MDR (110C) serial PSKPhase-Shift Keying/QAMQuadrature Amplitude Modulation signal that can reach speeds up to 9600 bpsBits per second (bps) (128000 bpsBits per second (bps) with no interleaving).
I/Q Raw Recording
Audio Sample
STANAGNATO Standardization Agreement (STANAG), defines processes, procedures, terms, and conditions for common military or technical procedures or equipment between the member countries of the North Atlantic Treaty Organization (NATO). 4539 or MIL-STD-188-110B/C Appendix C is a HDR (110B) / MDR (110C) serial PSKPhase-Shift Keying/QAMQuadrature Amplitude Modulation signal that can reach speeds up to 9600 bpsBits per second (bps) (12800 bpsBits per second (bps) with no interleaving). In 110B, this was designated as High Data Rate, but in 110C, this mode was recategorized Medium Data Rate. It is officially designated as "HFHigh Frequency (3-30 MHz) data waveforms for data rates above 2400 bpsBits per second (bps) in 3 kHzKiloHertz (kHz) 10^3 Hz channels."

Has similar operation and parameters as the mandatory MIL-STD-188-110 Serial mode, but uses different modulations and higher speeds. In addition, each speed except for 12800 bpsBits per second (bps) has 6 different interleaving modes. Ultra Short, Very Short, Short, Medium, Long, and Very Long.


Modulation Modes of STANAGNATO Standardization Agreement (STANAG), defines processes, procedures, terms, and conditions for common military or technical procedures or equipment between the member countries of the North Atlantic Treaty Organization (NATO). 4539
Data Rate
(bpsBits per second (bps))
Bits per Symbol
(Modulation)
FECForward Error Correction Encoding
Rate
12800 bpsBits per second (bps) 6 (64QAM) None
9600 bpsBits per second (bps) 6 (64QAM) 3/4
8000 bpsBits per second (bps) 5 (32QAM) 3/4
6400 bpsBits per second (bps) 4 (16QAM) 3/4
4800 bpsBits per second (bps) 3 (8PSK8-Phase Phase-Shift Keying (3 bits per symbol)) 3/4
3200 bpsBits per second (bps) 2 (QPSKQuadrature Phase-Shift Keying (2 bits per symbol)) 3/4

Samples[edit]

QAMQuadrature Amplitude Modulation 8000 Med QAMQuadrature Amplitude Modulation 8000 Very Short QPSKQuadrature Phase-Shift Keying (2 bits per symbol) 3200 Short

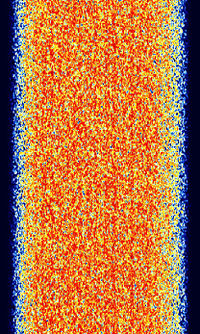

QAM 8000 M.jpg

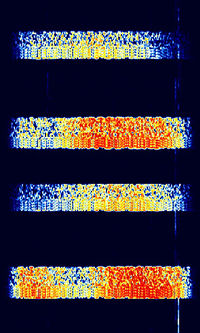

QAM VS.jpg

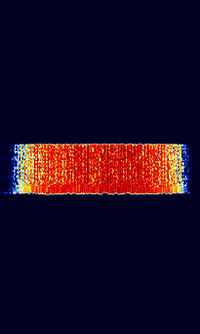

QPSK S.jpg
