Codan Data Modem
Codan Modem.jpg
Frequencies 3MHz3,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
3,000 kHzKiloHertz (kHz) 10^3 Hz
,30MHz30,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
30,000 kHzKiloHertz (kHz) 10^3 Hz
3,000 kHzKiloHertz (kHz) 10^3 Hz
MHzMegaHertz (MHz) 10^6 Hz
30,000 kHzKiloHertz (kHz) 10^3 Hz
30 MHzMegaHertz (MHz) 10^6 Hz
Frequency Range MHzMegaHertz (MHz) 10^6 Hz3,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
3,000 kHzKiloHertz (kHz) 10^3 Hz
- 30 MHzMegaHertz (MHz) 10^6 Hz30,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
30,000 kHzKiloHertz (kHz) 10^3 Hz
Mode USBUpper Side Band Modulation (Radio, referring to reception and modulation mode)Universal Serial Bus (Computer, referring to USB Ports and cables)
Modulation PSKPhase-Shift Keying,FSKFrequency-Shift Keying
ACF
Bandwidth 400 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).0.4 kHzKiloHertz (kHz) 10^3 Hz
4.0e-4 MHzMegaHertz (MHz) 10^6 Hz
,1800 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).1.8 kHzKiloHertz (kHz) 10^3 Hz
0.0018 MHzMegaHertz (MHz) 10^6 Hz
,2560 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).2.56 kHzKiloHertz (kHz) 10^3 Hz
0.00256 MHzMegaHertz (MHz) 10^6 Hz
0.4 kHzKiloHertz (kHz) 10^3 Hz
4.0e-4 MHzMegaHertz (MHz) 10^6 Hz
2.56 kHzKiloHertz (kHz) 10^3 Hz
0.00256 MHzMegaHertz (MHz) 10^6 Hz
Location Worldwide
Short Description Codan Data Modulation for Codan Data Modems. Has 3 distinct signals: Data, ALEAutomatic Link Establishment, and SELCAL. This modulation is used in Codan's 9001, 9002, 3012 and 3212 modems.
I/Q Raw Recording
Audio Sample

Codan Data Modulation for Codan Data Modems. This modulation is used in Codan's 9001, 9002, 3012 and 3212 modems.

Data link comprises of 16 DPSKDifferential Phase-Shift Keying (Differential Phase-Shift Keying) channels at 112.5 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). spacing on 1800 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). of bandwidth.

Codan's CHIRP (an ALEAutomatic Link Establishment signal) uses PSKPhase-Shift Keying modulation across 32 channels with 80Hz of spacing. CHIRP uses 2560Hz of bandwidth.


Frequencies[edit]

Frequencies spotted at:

  • 3450 kHzKiloHertz (kHz) 10^3 Hz
  • 5254 kHzKiloHertz (kHz) 10^3 Hz
  • 7915 kHzKiloHertz (kHz) 10^3 Hz
  • 9066 kHzKiloHertz (kHz) 10^3 Hz

Mode Samples[edit]

Codan's Transmission Modes

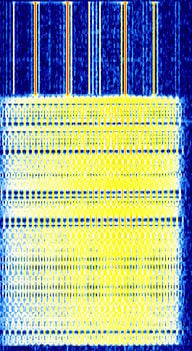

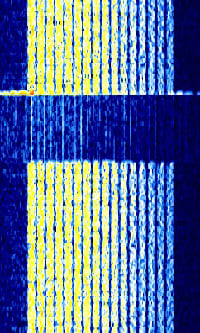

CHIRP (ALEAutomatic Link Establishment) Data
ALE chirp.jpg
Codan main data.jpg

Decoding Software[edit]

Hobby Level Software
  • Sorcerer (Only Codan CHIRP and SELCAL. No data.)


Professional Equipment/Software

Video Examples[edit]

Additional Links[edit]

Additional Images[edit]
