RWM
Frequencies 4996 kHzKiloHertz (kHz) 10^3 Hz4,996,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
4.996 MHzMegaHertz (MHz) 10^6 Hz
,9996 kHzKiloHertz (kHz) 10^3 Hz9,996,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
9.996 MHzMegaHertz (MHz) 10^6 Hz
,14996 kHzKiloHertz (kHz) 10^3 Hz14,996,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
14.996 MHzMegaHertz (MHz) 10^6 Hz
4,996 kHzKiloHertz (kHz) 10^3 Hz
4.996 MHzMegaHertz (MHz) 10^6 Hz
14,996 kHzKiloHertz (kHz) 10^3 Hz
14.996 MHzMegaHertz (MHz) 10^6 Hz
Frequency Range 4.996 MHzMegaHertz (MHz) 10^6 Hz4,996,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
4,996 kHzKiloHertz (kHz) 10^3 Hz
- 14.996 MHzMegaHertz (MHz) 10^6 Hz14,996,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
14,996 kHzKiloHertz (kHz) 10^3 Hz
Mode CWContinuous Wave
Modulation OOKOn-Off Keying Modulation
ACF n/a , 1000 msmilliseconds (.001 of a second) , 100 msmilliseconds (.001 of a second).
Bandwidth 5 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).0.005 kHzKiloHertz (kHz) 10^3 Hz
5.0e-6 MHzMegaHertz (MHz) 10^6 Hz
0.005 kHzKiloHertz (kHz) 10^3 Hz
5.0e-6 MHzMegaHertz (MHz) 10^6 Hz
0.005 kHzKiloHertz (kHz) 10^3 Hz
5.0e-6 MHzMegaHertz (MHz) 10^6 Hz
Location Russia
Short Description RWM is a Russian shortwave time signal station.
I/Q Raw Recording
Audio Sample

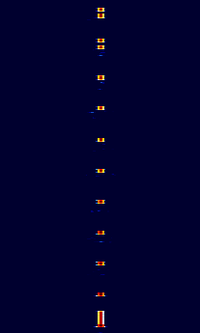

RWM is a Russian shortwave time signal station. Unlike other time signal stations, RWM only transmits time intervals, it does not tell you the time of day or month nor year.


Click Here to Hear RWM Live at WebSDR Univ. of Twente[edit]

Operation[edit]

From Wikipedia:

Between 0 and 8 minutes past the hour, RWM transmits a straight unmodulated carrier wave. At 9 minutes past, RWM identifies itself in Morse code. Between 10 and 20 minutes past the hour, RWM transmits a 1Hz pulse, with the difference between UT1 and UTC in units of one-fiftieth of a second encoded onto the once-per-second pulses. Between 20 and 30 minutes past the hour, RWM transmits 10 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). pulses each second. This transmission cycle is repeated every half hour.

Samples[edit]

Morse into 1Hz 1Hz 1Hz into 10 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 10 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).

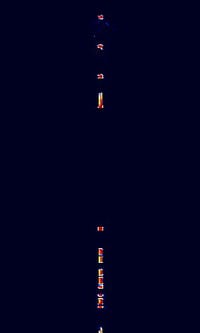

RWM Morse to 1.jpg

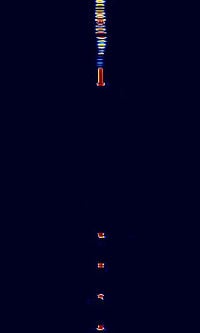

RWM 1 to 10.jpg

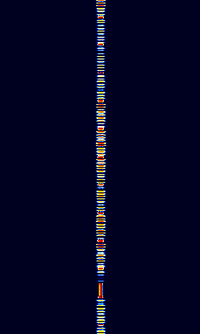

RWM time 10.png

Frequencies[edit]

RWM transmits at 4996 kHzKiloHertz (kHz) 10^3 Hz, 9996 kHzKiloHertz (kHz) 10^3 Hz and 14996 kHzKiloHertz (kHz) 10^3 Hz.


Video Examples[edit]

Additional Links[edit]


Additional Images[edit]
