Israeli Navy Hybrid Modem (188-110 MOD)
Mil Mod Israeli.jpg
Frequencies 3 MHzMegaHertz (MHz) 10^6 Hz3,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
3,000 kHzKiloHertz (kHz) 10^3 Hz
,30 MHzMegaHertz (MHz) 10^6 Hz30,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
30,000 kHzKiloHertz (kHz) 10^3 Hz
3,000 kHzKiloHertz (kHz) 10^3 Hz
MHzMegaHertz (MHz) 10^6 Hz
30,000 kHzKiloHertz (kHz) 10^3 Hz
30 MHzMegaHertz (MHz) 10^6 Hz
Frequency Range MHzMegaHertz (MHz) 10^6 Hz3,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
3,000 kHzKiloHertz (kHz) 10^3 Hz
- 30 MHzMegaHertz (MHz) 10^6 Hz30,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
30,000 kHzKiloHertz (kHz) 10^3 Hz
Mode USBUpper Side Band Modulation (Radio, referring to reception and modulation mode)Universal Serial Bus (Computer, referring to USB Ports and cables)
Modulation PSKPhase-Shift Keying
ACF MIL-STD body: 66.6 msmilliseconds (.001 of a second)
Bandwidth 2750 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).2.75 kHzKiloHertz (kHz) 10^3 Hz
0.00275 MHzMegaHertz (MHz) 10^6 Hz
2.75 kHzKiloHertz (kHz) 10^3 Hz
0.00275 MHzMegaHertz (MHz) 10^6 Hz
2.75 kHzKiloHertz (kHz) 10^3 Hz
0.00275 MHzMegaHertz (MHz) 10^6 Hz
Location Israel
Short Description The Israeli Naval Hybrid Modem is based on the MIL-STD-188-110 Serial Standard. Has characteristic preamble with 4/6 Tone and 18 QPSKQuadrature Phase-Shift Keying (2 bits per symbol) parallel mode before 110 Serial transmission. Possible use as a broadcast transmitter for ships. Used by the Israeli Navy 4XZ station from Haifa.
I/Q Raw Recording
Audio Sample

The Israeli Naval Hybrid Modem is based on the MIL-STD-188-110 Serial Standard. Has characteristic preamble with 4/6 Tone and 18 QPSKQuadrature Phase-Shift Keying (2 bits per symbol) parallel mode before 110 Serial transmission. Possible use as a broadcast transmitter for ships. Used by the Israeli Navy 4XZ station from Haifa.


Variations of this hybrid modem have been seen. Some start with 6 tones, others start with 4 tones. Furthermore, some have a single short 1000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). tone right before the 4/6 tone preamble with a length of 233ms.


Samples[edit]

6 Tone Preamble 4 Tone Preamble
(with add tone)

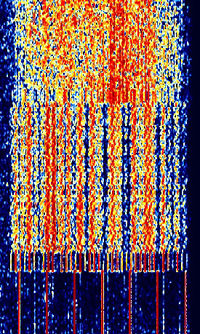

Hybrid Israeli MIL STD 188 110 Serial QPSK.jpg

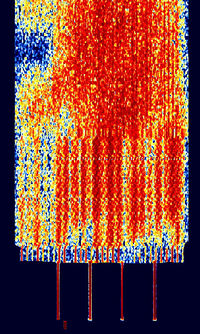

4 tone Lsraeli hybrid.jpg
