Emergency Managers Weather Information Network (EMWIN) - Repeater
Frequencies 163.325 MHz,163.35 MHz,168.8125 MHz,168.7125 MHz,163.3 MHz
Frequency Range 163.3 MHz - 168.8125 MHz
Mode NFM
Modulation AFSK
ACF
Emission Designator
Bandwidth 20 kHz
Location United States
Short Description The Emergency Managers Weather Information Network (EMWIN) is a system for distributing a live stream of weather information in the United States. This is the VHF Repeater of the network.
I/Q Raw Recording Download file
Audio Sample

The Emergency Managers Weather Information Network (EMWIN) is a system for distributing a live stream of weather information in the United States. This is the VHFVery High Frequency (30-300 MHz) Repeater of the network. The backbone of the system is operated via satellite by the U.S. National Weather Service (NWS), but data are transmitted over radio repeaters by the NWS, citizens, and other organizations in many regions, and information can also be downloaded via the Internet.

EMWIN VHFVery High Frequency (30-300 MHz) Repeaters use ASCII 8-bit modulation. Typically run at 1200 baudBaud (unit symbol Bd) is the unit for symbol rate or modulation rate in symbols per second., but 2400 and 9600 baudBaud (unit symbol Bd) is the unit for symbol rate or modulation rate in symbols per second. implementations do exist in certain places.

Local VHFVery High Frequency (30-300 MHz)/UHFUltra High Frequency (300-3000 MHz) radio rebroadcasts and older-generation EMWIN satellite systems operate at the speeds of 1200 and 9600 baudBaud (unit symbol Bd) is the unit for symbol rate or modulation rate in symbols per second.. EMWIN data consists of textual observational and forecast information, including a limited number of cloud and radar images. The new EMWIN, labeled EMWIN-N, began being upgraded in 2009. The upgrade continues through 2011 to ready older GOES satellites to provide a higher speed of 19.2 kbit/sKilobits per second (kbps). The data broadcasts are monetarily free with both local rebroadcasts and satellite feeds.

EMWIN weather data is primarily transmitted over GOES satellites that observe the United States. The new satellites are the GOES-N series, and are designated GOES 13, GOES 14 and GOES 15.

Samples[edit]

File:Unknown163MORSE.mp3



Frequencies[edit]

These frequencies are in the VHFVery High Frequency (30-300 MHz) band and are specifically 163.300Mhz, 163.325Mhz, 163.350Mhz, 168.8125Mhz, and 168.7125Mhz.

Proof of identification[edit]

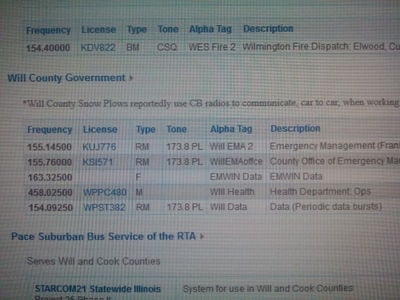

Sorry for poor quality in taking this photo. Real frequency is "163.325" "EMWIN data"


Decoding Software[edit]

Decoding Tutorials[edit]

Using Sorcerer (Use the ASYNC FSKFrequency-Shift Keying Decoder mode):

  • Inverted: No
  • Shift: 1000Hz
  • Speed 1200 BaudBaud (unit symbol Bd) is the unit for symbol rate or modulation rate in symbols per second.
  • Code: ASCII
  • Framing: 8N1

Additional Links[edit]


Additional Samples[edit]
