EURO
Euro 5-tone.png
Frequencies 30 MHzMegaHertz (MHz) 10^6 Hz30,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
30,000 kHzKiloHertz (kHz) 10^3 Hz
,800 MHzMegaHertz (MHz) 10^6 Hz800,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
800,000 kHzKiloHertz (kHz) 10^3 Hz
30,000 kHzKiloHertz (kHz) 10^3 Hz
30 MHzMegaHertz (MHz) 10^6 Hz
800,000 kHzKiloHertz (kHz) 10^3 Hz
800 MHzMegaHertz (MHz) 10^6 Hz
Frequency Range 30 MHzMegaHertz (MHz) 10^6 Hz30,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
30,000 kHzKiloHertz (kHz) 10^3 Hz
- 800 MHzMegaHertz (MHz) 10^6 Hz800,000,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
800,000 kHzKiloHertz (kHz) 10^3 Hz
Mode NFMNarrowband Frequency Modulation
Modulation MFSKMultiple Frequency Shift-Keying
ACF
Bandwidth 5 kHzKiloHertz (kHz) 10^3 Hz5,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
0.005 MHzMegaHertz (MHz) 10^6 Hz
kHzKiloHertz (kHz) 10^3 Hz
0.005 MHzMegaHertz (MHz) 10^6 Hz
kHzKiloHertz (kHz) 10^3 Hz
0.005 MHzMegaHertz (MHz) 10^6 Hz
Location Worldwide
Short Description EURO is a 5-tone selcall mode used in VHFVery High Frequency (30-300 MHz)/UHFUltra High Frequency (300-3000 MHz) radios. Also known as EuroSignal.
I/Q Raw Recording
Audio Sample
EURO is a 6/7-tone selcall mode used in VHFVery High Frequency (30-300 MHz)/UHFUltra High Frequency (300-3000 MHz) radios. Also known as EuroSignal.

Selcall (selective calling) is a type of squelch protocol used in radio communications systems, in which transmissions include a brief burst of sequential audio tones. Receivers that are set to respond to the transmitted tone sequence will open their squelch, while others will remain muted.

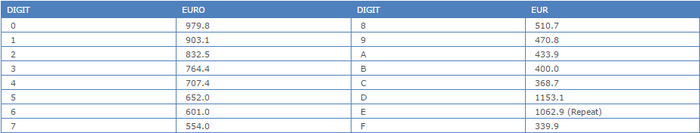

EURO has 16 tones to choose from, but can send at most 7 tones at a time. EURO commonly sends 6-7 tones per burst. Each tone has a duration of 100 msmilliseconds (.001 of a second) per tone. The bursts transmit right before a radio transmission.

EURO Table.png


Samples[edit]

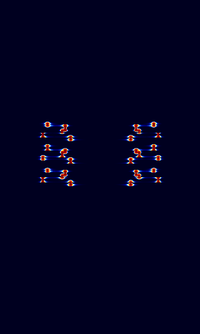

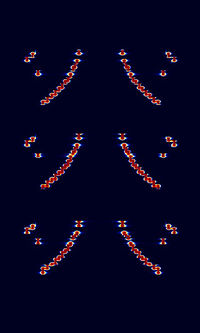

EURO Full Range EURO 5-Tones
Euro range.jpg
Euro 5-tone.png
