CIS-12

From Signal Identification Wiki
Jump to: navigation, search
CISCommonwealth of Independent States (CIS), the former Soviet Republic-12
Frequencies 7026 kHzKiloHertz (kHz) 10^3 Hz7,026,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
7.026 MHzMegaHertz (MHz) 10^6 Hz
,7610 kHzKiloHertz (kHz) 10^3 Hz7,610,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
7.61 MHzMegaHertz (MHz) 10^6 Hz
,8500 kHzKiloHertz (kHz) 10^3 Hz8,500,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
8.5 MHzMegaHertz (MHz) 10^6 Hz
,10500 kHzKiloHertz (kHz) 10^3 Hz10,500,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
10.5 MHzMegaHertz (MHz) 10^6 Hz
,14600 kHzKiloHertz (kHz) 10^3 Hz14,600,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
14.6 MHzMegaHertz (MHz) 10^6 Hz
7,026 kHzKiloHertz (kHz) 10^3 Hz
7.026 MHzMegaHertz (MHz) 10^6 Hz
14,600 kHzKiloHertz (kHz) 10^3 Hz
14.6 MHzMegaHertz (MHz) 10^6 Hz
Frequency Range 7.026 MHzMegaHertz (MHz) 10^6 Hz7,026,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
7,026 kHzKiloHertz (kHz) 10^3 Hz
- 14.6 MHzMegaHertz (MHz) 10^6 Hz14,600,000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).
14,600 kHzKiloHertz (kHz) 10^3 Hz
Mode USBUpper Side Band Modulation (Radio, referring to reception and modulation mode)Universal Serial Bus (Computer, referring to USB Ports and cables)
Modulation PSKPhase-Shift Keying
ACF
Bandwidth 3100 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).3.1 kHzKiloHertz (kHz) 10^3 Hz
0.0031 MHzMegaHertz (MHz) 10^6 Hz
3.1 kHzKiloHertz (kHz) 10^3 Hz
0.0031 MHzMegaHertz (MHz) 10^6 Hz
3.1 kHzKiloHertz (kHz) 10^3 Hz
0.0031 MHzMegaHertz (MHz) 10^6 Hz
Location Russia
Short Description CISCommonwealth of Independent States (CIS), the former Soviet Republic-12 (Also known as MS5, FIRE, AT-3004D, or AT-3104D) is a 12-tone PSKPhase-Shift Keying Russian military multi-channel modem.
I/Q Raw Recording
Audio Sample
CISCommonwealth of Independent States (CIS), the former Soviet Republic-12 (Also known as MS5, FIRE, AT-3004D, or AT-3104D) is a 12-tone PSKPhase-Shift Keying Russian military multi-channel modem. It features scrambled voice/ data-communication at a maximum data rate of 4800 bpsBits per second (bps). Each subcarrier transmits at 120 BdBaud (unit symbol Bd) is the unit for symbol rate or modulation rate in symbols per second.. There is 200 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). of spacing between each subcarrier.

This waveform is transmitted by the AT-3004D and the newer AT-3104D military modems in use by the Russian Military. These modems were designed to have many different devices plugged into them to form the modem’s input – most often teleprinters unique to the different military services and civilian agencies that use them, and also, vocoders and speech encipherment systems, but all are transmitted in the same fashion.

A characteristic trait of this signal is the carrier signal located +3300 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). on the right side of the signal.


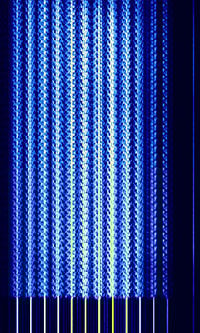

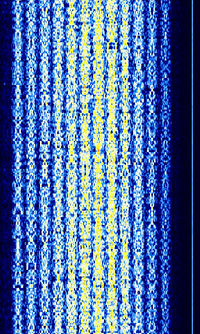

Samples[edit]

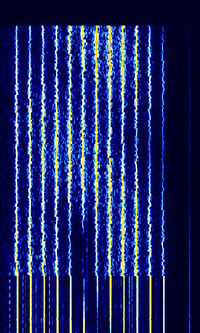

Idle Traffic CISCommonwealth of Independent States (CIS), the former Soviet Republic-12 Variant
CIS-12 VAR.jpg

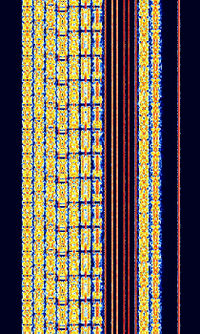

3 Channels Idle
CIS-12 variant 3 channels idle.jpg

Additional Samples:


Decoding Software[edit]

  • While this software can decode this mode, it cannot decrypt it
